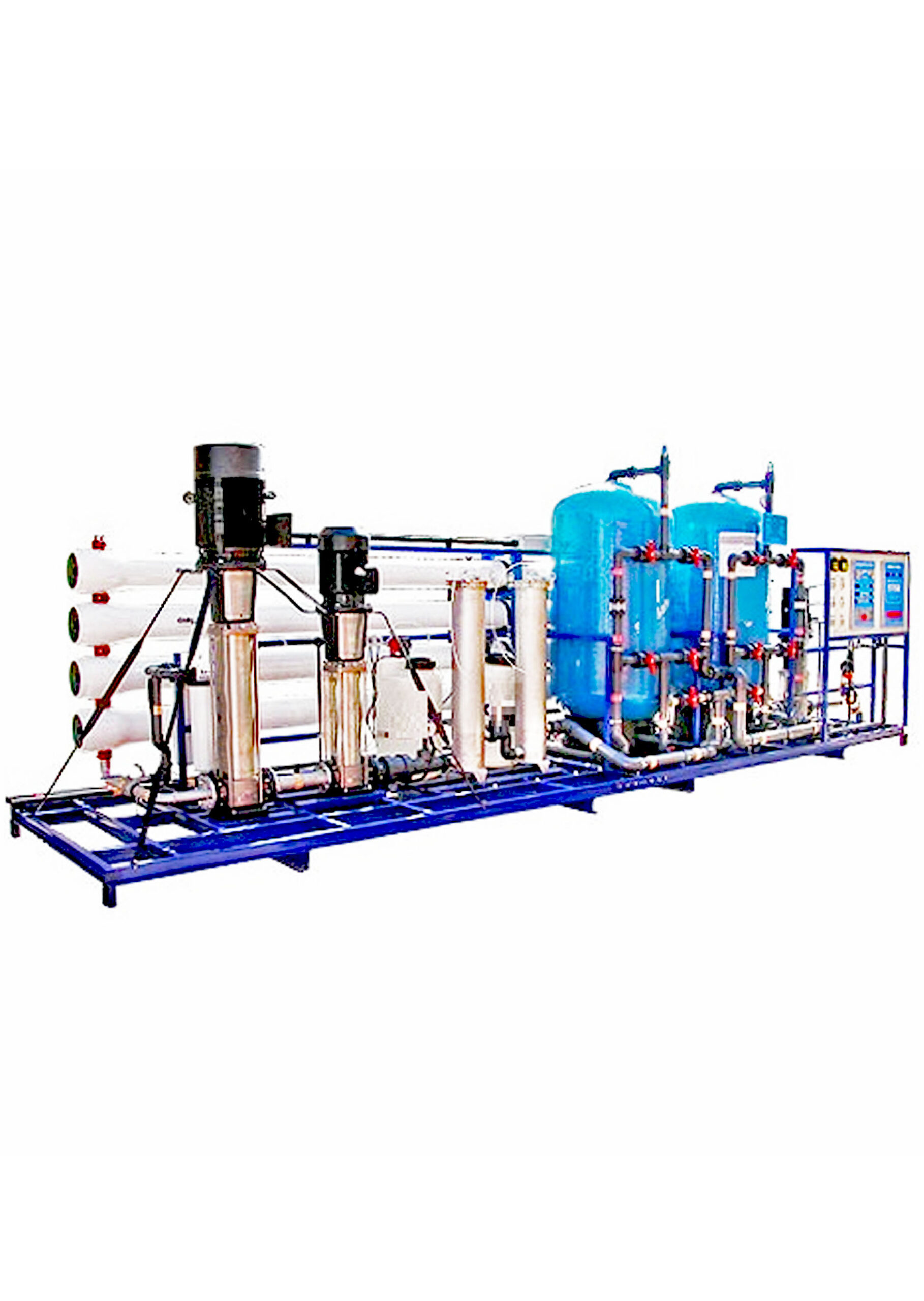

For any high-purity application, BWRO systems from Crystal BIO Water Treatment offer the ideal balance of value and features. Every BWRO system is made to the strict standards of all equipment using only the finest components.
For any commercial or industrial application ranging from 50,000 to over 150,000 GPD, standard BWRO versions are available.
Specifications:
Capacity of the R.O. system: 150,000 GPD
104 GPM (390 Litter Per Minutes) is the flow rate.
95–98% rejection
50–60% of recovery
Brand of RO membrane: Dow Film Tec
FRP vessel: RO pressure vessel
Pump for high pressure: Grundfos
the PP Sediment pre-filter
Drain flowmeter and pure water flowmeter
a valve with low and high pressures
Stainless steel welding on a RO frame
The primary panel’s pressure display is complete.
High-pressure SUS304
Sch # 80 low-pressure UPVC pipe
Valve adjustments, feed valves, and flush valves
Typical Features:
Dow coated with fiberglass Membranes by Filmtec
Pump, Valves, and Pressure Gauges in 316SS
High-Pressure 316L Stainless Steel Piping
230V-460V, 60Hz, TEFC motor
High and Low Feed Pressures are Automatic Turn off the flowmeters for permeate and concentrate.
Valve for Automatic Feed Water Shut-Off
Prefilter for sediment of 5 m
Stainless Steel Pressure Vessels
Pressure gauges for prefilters
Between Pass 1 and Pass, a buffer tank
